SANCTUARY THEATER TECHNICAL INFORMATION

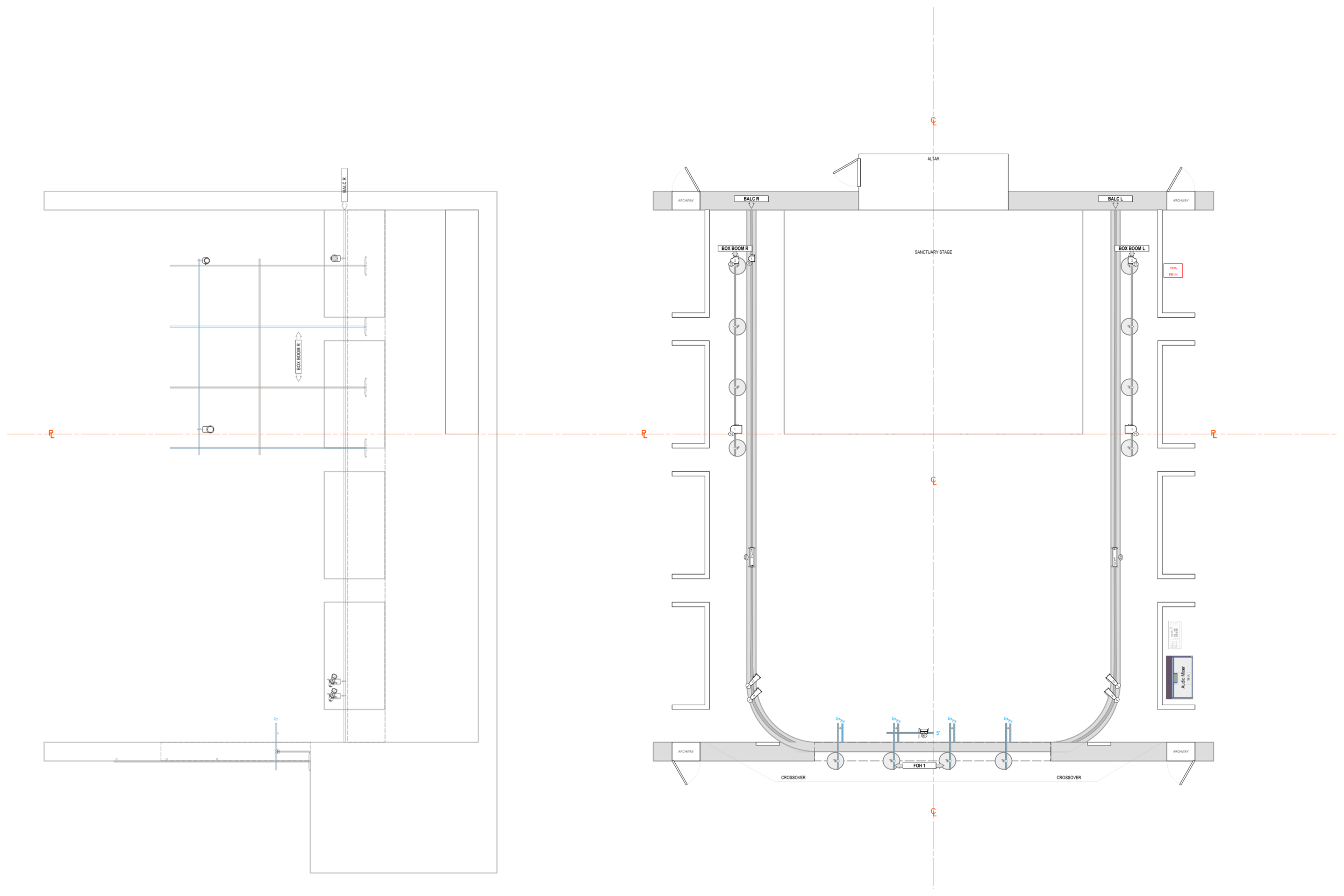

This diagram is provided for reference only. Please contact us for updated technical diagrams, available upon request.

LIGHTING EQUIPMENT

  • Power distributor x 1

  • ETC Express 72/144 Lighting Console with monitor, writes to 3.5” floppy disc

  • 24-Channel Dimmer Rack with Stage Pin sockets x 2

  • 26° S4 ERS @ 575w x 4

  • 36° S4 ERS @ 575w x 16

  • 50° S4 ERS @ 575w x 8

  • S4 Jr. Zm @ 575w x 3

  • Manual Control Follow Spot x 1

SOUND EQUIPMENT

  • Speakers: 2 x Rockville BPA15 15″ Professional Powered Active 800w DJ PA Speaker w/ Bluetooth

  • Mixer: Behringer XENYX X2222USB, 22-Input 2/2-Bus Mixer with XENYX Mic Preamps Compressors, British EQs, 24-Bit Multi-FX Processor and USB/Audio Interface

  • On stage input: Seismic Audio SACB-8x4x100 8-Channel XLR Low Profile Circuit Board. Sends: 8 XLR Male Connectors. Returns: 4 XLR Female Connectors

PROJECTION EQUIPMENT

  • Manual pull-down front projection screen, mounted above Sanctuary Stage, 170-inch Diagonal, 1:1 Aspect Ratio. View Size: 120.0″ x 120.0″

  • HD digital projector with HDMI input

  • 50 ft HDMI cable
